Model No.: RYASY600-1200B

Production Capacity: 1000set/year

Delivery Date: 30days

Type: Rotogravure Printing Machin...

Usage: Paper Printer

Means of Transport: Ocean

Packing: Export wooden pallet packag...

Plate: Gravure

Color & Page: Multicolor

Brand Name: RUIWING MACHINE

This machine is used for BOPP\PET\PVG\PE and Paper etc with good printing performance of rolling material for multicolor continuous printing.

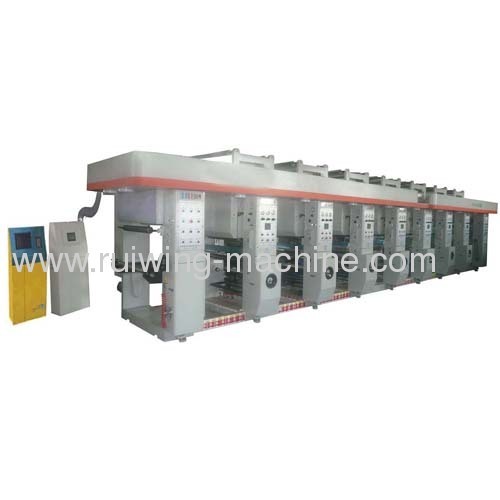

Name: RYASY600-1200B computer medium speed gravure printing machine
Use:
This machine is used for BOPP\PET\PVG\PE and Paper etc with good printing performance of rolling material for multicolor continuous printing.
Feature:
1. The whole machine is fixed by permutation compositon, according to the customers' requirement the pdrinting colorunit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controller, The whole machine adopts thress-motor constant-tension force control system.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. With display of flashed deviation, correcting for system comprehensive deviation as well as super-different slarming function.
5. Double phot-electricity checking, improve the whole checking and adjustment speed.

6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8. The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Ind cycle system.
11. Gas expansion style loading and unloading shaft.
12. Winding and rewinding are both double working mechanisms to make the material complete with non-stop.
13. It can elect different computer flashed boundary and stationary checking figure.

Main technical parameter:
Length of printing:	240-1100mm
Breadth of printing:	600-1200mm
Speed of printing:	5-100m/min
Precision of overprint:	≤0.15mm
Gross installation power:	80Kw
External dimension:	13000×2500×2500mm
Diameter of rollout:	600mm
Weight of machine:	14000kg
