Film Blowing and Offset Press Unit
Payment Terms: |
T/T |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
SD-45-YT2600, SD-55-YT2800,...
Production Capacity:
1000set/year
Delivery Date:
30days
Use:
Others
Brand Name:
RUIWING MACHINE
Means of Transport:
Ocean
Packing:
Export wooden pallet packag...
Plastic Type:
PP/PE
Shaft Design:
Single
The fuselage is a square steelchassis, drags elsctric motor taking frequency conversion, friction to collect a book only, going up and down and so on.

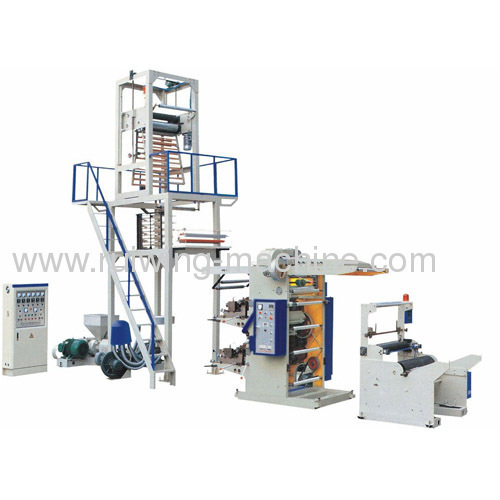

Name: Film Blowing and Offset Press Unit (SD-45-YT2600)
The fuselage is a square steelchassis, drags elsctric motor taking frequency conversion, friction to collect a book only, going up and down and so on.
Be fit to puff height, low pressure polyethylene industry film, farm-oriented mulch film. Continue printing the various platic film, spread and despise the leather, package products, shan two-sides pritingonce to be completed. 360 degree of register sets, not affecting the film elongating by accurately, can make to print adjustment, the image are at any time arbitrarily limpid to the color exquisite.
Main technical parameters: |
Model | SD-45-YT2600 | SD-55-YT2800 | SD-60-YT21000 |
suitable material | LDPE,HDPE,LLDPE | LDPE,HDPE,LLDPE | LDPE,HDPE,LLDPE |
Screw diameter | 45mm | 45mm | 60mm |
Screw ratio | L/D28:1 | L/D28:1 | L/D28:1 |
driving motor | 11Kw | 15Kw | 18.5Kw |
Max.extrusion output | 36kg/h | 50kg/h | 70kg/h |
die size | ƒÓ60 ƒÓ80 | ƒÓ80 ƒÓ130 | ƒÓ80 ƒÓ160 |
width of Blowing film | 600mm | 800mm | 1000mm |
thickness of Blowing film | 0.008-0.10mm | 0.008-0.10mm | 0.008-0.10mm |
Printing length scope | 191-1200mm | 191-1200mm | 191-1200mm |
Printing width | 560mm | 760mm | 960mm |
Total power | 28kw | 32kw | 40kw |
Machine weight | 3800Kg | 4200Kg | 5000Kg |
outline diameter(L*W*H) | 6000*2400*4000 | 6200*2600*4300 | 6400*2800*4800 |
