Bag Making Machine
Payment Terms: |
T/T |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
FQ600-1000
Production Capacity:
1000set/year
Delivery Date:
30days
Use:
Others
Brand Name:
RUIWING MACHINE
Means of Transport:
Ocean
Packing:
Standard Export Wooden Case
Plastic Type:
PP/PE
Shaft Design:
Others
high-low pressure vest bags(supermarket handbags), handbags(for clothes and shoes), disposable medical packing bags and bags for sanitary napkins.

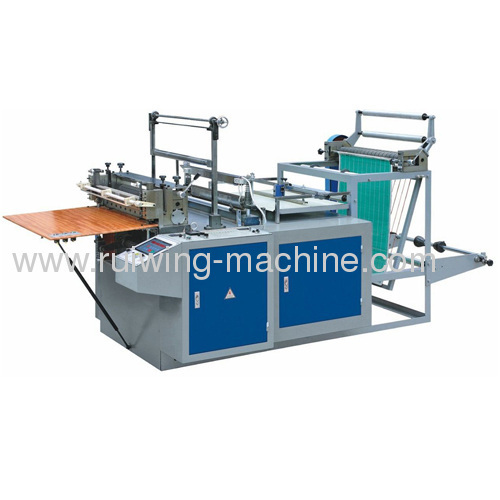

Name: FQ Series Computer Heat-sealing & cold cutting Bag-making Machine
Suitable materials: High-low pressure\PP\PE, etc.
Products: high-low pressure vest bags(supermarket handbags), handbags(for clothes and shoes), disposable medical packing bags and bags for sanitary napkins.
Functions:
1. The machine adopts microcomputer control and material-pulling by stepping motor(servomotor control system can also be selected and equipped).
2. Arbitrary fixed-length accurate and stable step photoelectric tracking, stopping automatically when the lable is lost, photoelectric control feeding.
3. Automatic counting and set able counting alarm.
4. Automatic constant temperature makes the sealing of bag opening firm and smooth.
Main Technical Parameters: |
Model | 600 | 700 | 800 | 900 | 1000 |
Max. Width of Bag making | 550mm | 650mm | 750mm | 850mm | 950mm |
Max.Length of Bag-making | 999mm | 999mm | 999mm | 999mm | 999mm |
Speed of bagmaking | 30-140pcs/min | 30-140pcs/min | 30-140pcs/min | 30-140pcs/min | 30-140pcs/min |
Electro-power | 3.5kw | 3.7kw | 4.3kw | 4.9kw | 5.3kw |
MachineWeight | 700kg | 760kg | 820kg | 900kg | 900kg |
Overall dimension(L*W*H)(mm) | 3300*1040*1600 | 3300*1140*1600 | 3300*1240*1600 | 3300*1340*1600 | 3300*1440*1660 |
