Bag Making Machine GDR-600, 700 manufacturer from China ZHEJIANG TOPLUCK PACKING MACHINE CO.,LTD.

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GDR-600, 700

Production Capacity: 1000set/year

Delivery Date: 30days

Use: Others

Brand Name: RUIWING MACHINE

Means of Transport: Ocean

Packing: Standard Export Wooden Case

Plastic Type: PP/PE

Shaft Design: Others

The machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film.

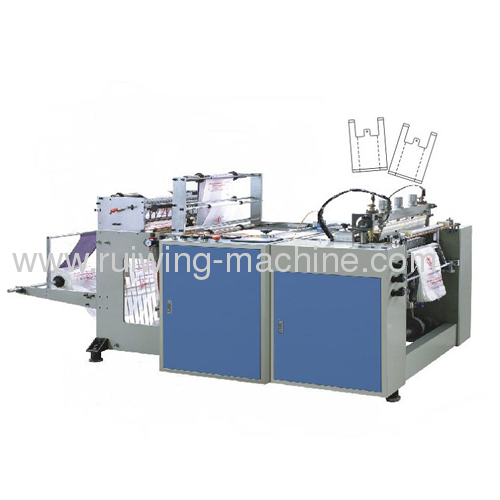

Name: High-Speed Heat-Sealing and Heat-Cutting Bag Making Machine (GDR-600, 700)

Characteristics:
The machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts microcomputer control, the liquid crystal touch screen actual display and servo motor fixed length. It is of high output and good economic result.

Model	GDR-600	GDR-700
Max. Bag-making Width	550mm	650mm
Max. Bag-making length	1000mm	1000mm
Bag-making Thickness	0.01 -0.05mm	0.01 -0.05mm
Bag-making Speed	120-200 pcs/min	120-200 pcs/min
Power of Main Motor	1.5Kw	1.5Kw
Heating Power	2Kw	2.4Kw
Total Power	4Kw	4.6Kw
Weight of Machine	820kg	900kg
Overall Dimensions	2500×1200× 1500mm	2500×1300× 1500mm
